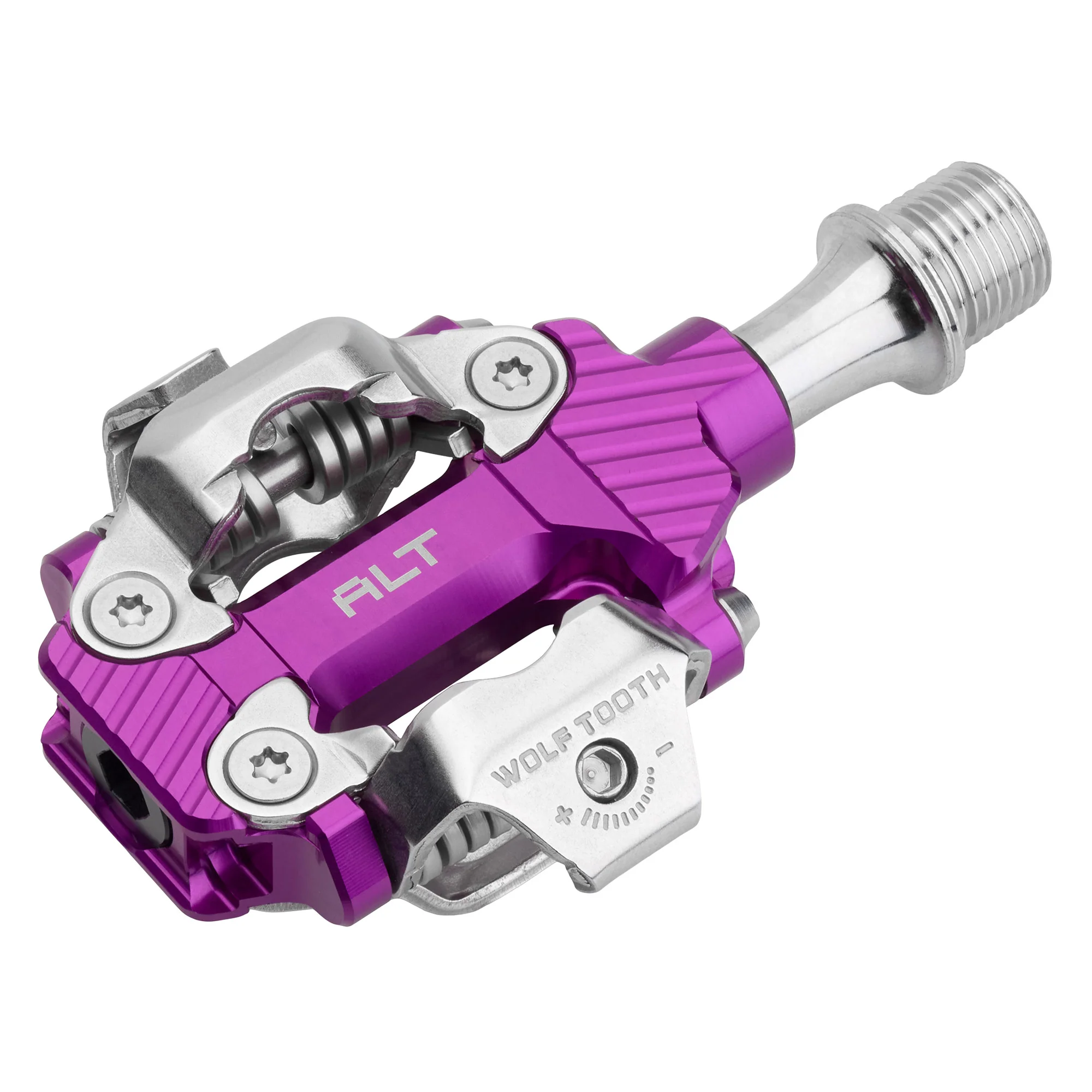

Wolf Tooth ALT XC Clipless Pedal
Taking clipless pedals to the next level, the ALT clipless pedal is aimed at XC and gravel riding. Light, thin and with a low stack height, these pedals deliver more platform area for next-level control and power transfer.
The beautifully machined CNC body has been extensively machined around the centre axle housing providing superior mud clearance. This machining does not take away from the large platform area of the body, the largest found in any XC pedal, maximising the pedal to shoe contact for a connection to the bike that gives exceptional power transfer and control. The ALT's ultra-thin body is just 15mm in height, giving ample clearance for cornering and navigating rock strewn trails.
Spinning on an igus bushing and triple stacked custom bearings, the ALT has a Q factor that is adjustable in 4mm increments as standard, to be either 51, 55 or 59mm, with the internal spacers and bearings arrangement making it easy to achieve the perfect fit and clearance to suit your stature and setup. Slimmer spacers may also be purchased separately, which will allow the Q Factor to be adjusted in 2mm increments.
It borrows the stainless steel axle design from the proven Waveform flat pedals, and these stainless steel components are echoed in the retention system, with both the bindings and hardware being constructed from this material for durability. Clipping in and out, with the provided Wolf Tooth cleats, is fast and precise, allowing you to stamp into the pedal with assurance, and it's also compatible with SPD cleats.
At only 295g, it is crammed with features that distinguish it from the pack and will enhance your performance in any XC or gravel event.
- Designed with XC and Gravel performance in mind
- Body CNC machined from 6061-T6 aluminium
- Axle from heat treated 17-4 PH stainless steel
- Binding cage and hardware from stainless steel
- Both thin and light, at 15mm and 295g
- Large platform area of 345mm2
- Adjustable Q factor options of 51, 55 and 59mm as standard
- Q factor is easily adjusted by rearranging spacers and bearings
- Supplied with Wolf Tooth cleats, compatible with SPD cleats
- Proven axle and bearing design from the Waveform Pedal
- Replacement parts and service guides available through Wolf Tooth's Right to Repair
- Designed and machined at Wolf Tooth's Minnesota headquarters
Taking clipless pedals to the next level, the ALT clipless pedal is aimed at XC and gravel riding. Light, thin and with a low stack height, these pedals deliver more platform area for next-level control and power transfer.
The beautifully machined CNC body has been extensively machined around the centre axle housing providing superior mud clearance. This machining does not take away from the large platform area of the body, the largest found in any XC pedal, maximising the pedal to shoe contact for a connection to the bike that gives exceptional power transfer and control. The ALT's ultra-thin body is just 15mm in height, giving ample clearance for cornering and navigating rock strewn trails.
Spinning on an igus bushing and triple stacked custom bearings, the ALT has a Q factor that is adjustable in 4mm increments as standard, to be either 51, 55 or 59mm, with the internal spacers and bearings arrangement making it easy to achieve the perfect fit and clearance to suit your stature and setup. Slimmer spacers may also be purchased separately, which will allow the Q Factor to be adjusted in 2mm increments.
It borrows the stainless steel axle design from the proven Waveform flat pedals, and these stainless steel components are echoed in the retention system, with both the bindings and hardware being constructed from this material for durability. Clipping in and out, with the provided Wolf Tooth cleats, is fast and precise, allowing you to stamp into the pedal with assurance, and it's also compatible with SPD cleats.
At only 295g, it is crammed with features that distinguish it from the pack and will enhance your performance in any XC or gravel event.
- Designed with XC and Gravel performance in mind
- Body CNC machined from 6061-T6 aluminium
- Axle from heat treated 17-4 PH stainless steel
- Binding cage and hardware from stainless steel
- Both thin and light, at 15mm and 295g
- Large platform area of 345mm2
- Adjustable Q factor options of 51, 55 and 59mm as standard
- Q factor is easily adjusted by rearranging spacers and bearings
- Supplied with Wolf Tooth cleats, compatible with SPD cleats
- Proven axle and bearing design from the Waveform Pedal
- Replacement parts and service guides available through Wolf Tooth's Right to Repair
- Designed and machined at Wolf Tooth's Minnesota headquarters
Original: $189.00
-70%$189.00
$56.70Description
